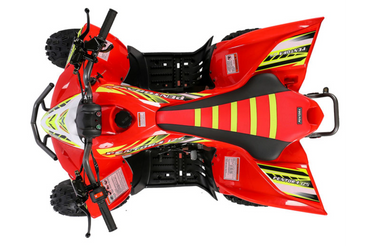

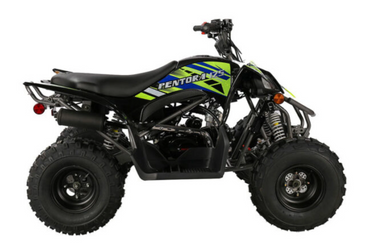

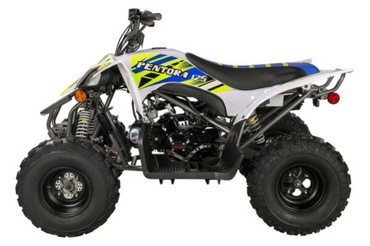

PENTORA 125CC sPORT

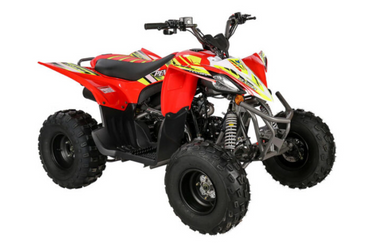

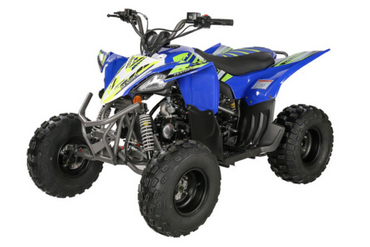

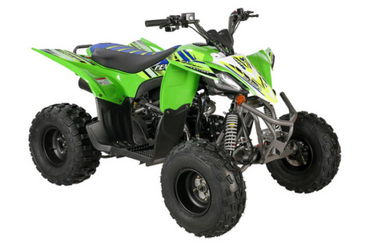

PENTORA 150CC SPORT
PENTORA 150CC utility
pENOTRA 125 - 150
125CC ADULT fRAME
125CC ADULT fRAME
125CC ADULT fRAME
ENGINE TYPE
125CC, AIR COOLER. 4 STROKE
MODEL NO. ZS154FMI
MANUFACTORY ZONGSHEN
BRORE×STROKE
2.1”× 2.1”
ENGINE CAPACITY 123.67ML
COMPRESSION RATIO 9.0:1
MAX.POWER
〔6.3（1±10%）〕/〔7500（1±5%）〕
MAX.TORQUE
〔8.8（1±10%）〕/〔5500（1±5%）〕
AUTOMATIC WITH REVERSE
TRANSMISSION CHAIN
BRAKES
FRONT DISC BRAKES BY HAND
REAR DISC BRAKES BY HAND AND FOOT
WHEELS
FRONT RIM 8 INCH
REAR RIM 8 INCH
TIRES
FRONT TIRE AT 18.7-8
REAR TIRE AT 18.9=8
TIRE CAPACITY 9PSI
BATTERY 12V/5AH SPEC
TANK CAPACITY 6.5L
L×W×H 61”X 39”X 42”
WHEELBASE 40.5”
FRONT WHEELBASE 34”
REAR WHEELBASE 30”
MINIMUM GROUND CLEARANCE 4
SEAT HEIGHT 29
RIDE HEIGHT 8.6
HANDLE HEIGHT 39.5
SUSPENSION TRAVEL
FRONT 2”
REAR 2.3
MINIMUM TURNING CIRCLE DIAMETER 149.6”
TURNING ANGLE <45°
MAX LOADING 150LBS
NET WEIGHT 260LBS
G. W. 285LBS
150CC SPORT
125CC ADULT fRAME
125CC ADULT fRAME
ENGINE TYPE
SINGLE CYCLINDER, AIR COOLER, 4 STROKE
MODEL NO. 157QMJ-B2
MANUFACTORY
WANG YE BRAND
BRORE×STROKE
57.4 ㎜*57.8 ㎜
ENGINE CAPACITY 149.6 ml
COMPRESSION RATIO 9.5:1
MAX.POWER
7.3 kW/7000 r/min
MAX.TORQUE
10.1 N·m/6000 r/min
TRANSMISSION CHAIN
BRAKES
FRONT DISC BRAKES BY HANDREAR DISC BRAKES BY HAND AND FOOT
WHEELS
FRONT RIM 10*5.5AT
REAR RIM 9*8.0AT
TIRES
FRONT TIRE AT20*7.0-10
REAR TIRE AT19*10-9
TIRE CAPACITY 9PSI
BATTERY 12V/7AH SPEC
L×W×H 63.9”* 41.7”* 41.9”
WHEELBASE 43.7
FRONT WHEELBASE 32.2”
REAR WHEELBASE 31.8”
MINIMUM GROUND CLEARANCE 5.1
SEAT HEIGHT 31.1
RIDE HEIGHT 8.8”
HANDLE HEIGHT 39.3”
SUSPENSION TRAVEL
FRONT 2.7”
REAR 3.1”
MINIMUM TURNING CIRCLE DIAMETER 232.2”± 19.6”
TURNING ANGLE <45°
MAX LOADING 220 LBS
NET WEIGHT 315 LBS
G. W. 374 LBS

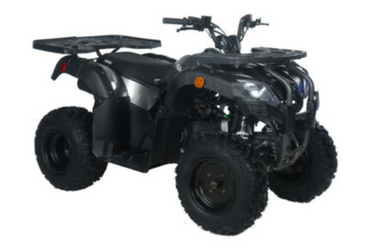

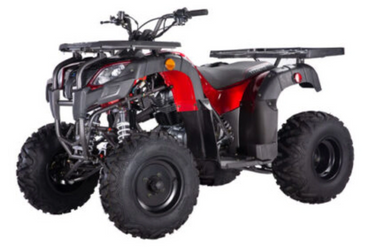

150CC UTILITY
125CC ADULT fRAME
150CC UTILITY
ENGINE SPEC
SINGLE CYCLINDER, AIR COOLER, 4 STROKE
MODEL NO. 157QMJ-B2
MANUFACTORY
WANG YE BRAND
BRORE×STROKE
57.4 ㎜*57.8 ㎜
ENGINE CAPACITY 149.6 ml
COMPRESSION RATIO 9.5:1
MAX.POWER
7.3 kW/7000 r/min
MAX.TORQUE
10.1 N·m/6000 r/min
TRANSMISSION CHAIN
BRAKES
FRONT DISC BRAKES BY HAND
REAR DISC BRAKES BY HAND AND FOOT
WHEELS
FRONT RIM 10*5.5AT
REAR RIM 9*8.0AT
TIRES
FRONT TIRE AT20*7.0-10
REAR TIRE AT19*10-9
TIRE CAPACITY 9PSI
BATTERY 12V，7HA
L×W×H 63.9”* 41.7”* 41.9”
WHEELBASE 43.7
FRONT WHEELBASE 32.2
REAR WHEELBASE 31.8
MINIMUM GROUND CLEARANCE 5.1
SEAT HEIGHT 31.1
RIDE HEIGHT 8.8”
HANDLE HEIGHT 39.3”
SUSPENSION TRAVEL
FRONT 2.7”
REAR 3.1”
MINIMUM TURNING CIRCLE DIAMETER 232.2”± 19.6”
TURNING ANGLE <45°
MAX LOADING 220 LBS
NET WEIGHT 315 LBS
G. W. 374 LBS
PENTORA 200 EFI
PENTORA 200 EFI
ENGINE
Air-Cooled SOHC 4-Stroke 176cc
Top Speed 35MPH
Pressure and Hybrid Splash Lubrication
Max Torque 10N·m/6000r/min
Compression
Ratio 9.5:1
Valve Configuration 2 Valve
TRANSMISSION & DRIVE
Drive Type Fully Automatic Gears CVT – F,N,R Clutching Type Automatic Centrifugal Dry Drive line Type Chain
Starting System Electric Start
SUSPENSION
Front Suspension Single A-Arm Rear Suspension Rear Single Shaft Swing Arm
BRAKES, TIRES & WHEELS
Front/Rear Brakes Disc Brakes
Front Tire20×7-10
Rear Tire19×10-9
Front/Rear Tread820mm / 810mm
MEASUREMENTS & DIMENSIONS
ATV Dimensions 63′(L) x 41′(W) x 41′(H)
Ground Clearance 5.9in
Wheelbase 45in
COLORS

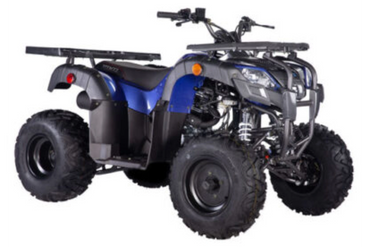

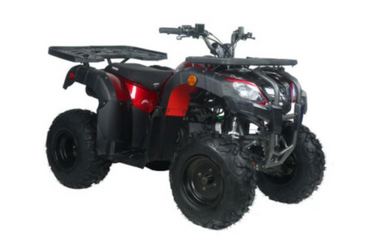

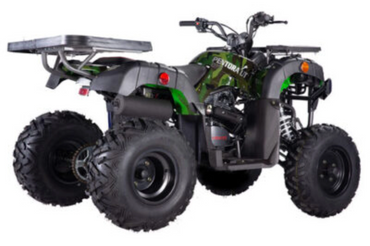

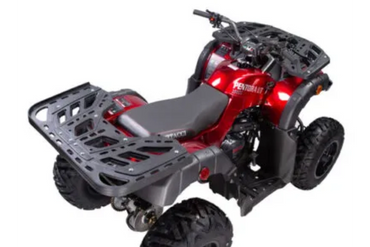

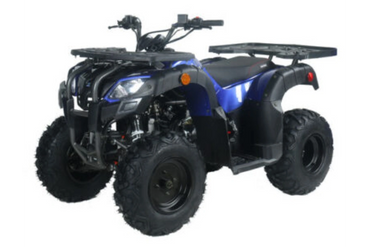

RED - BLUE - GREEN - ORANGE
